TUBEMASTER POWER SOURCE
MODEL 514A

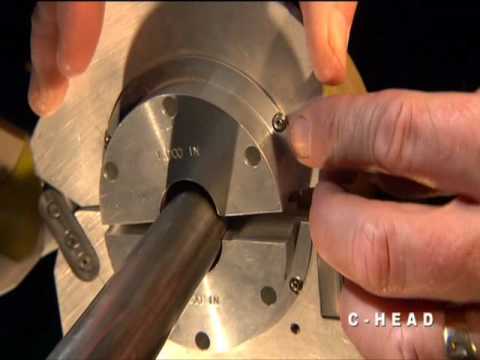

The Tubemaster Model 514A is an all-digital, programmable power source. It brings the repeatability, precision, and QA/QC verification possible with mechanized welding. Programming is simple and intuitive by manual entry or new Auto Program, which self-generates procedures. The Tubemaster operates a range of weld Heads for simple fusion welding, as well as models equipped for wire feeding.
Process:
GTAW
Programming:
Digital programmer. Multi-level time-based programming.
Amperage Output:
200 Amp
Input Power Requirements:
115 - 230 VAC (Autoranging), 1Ø, 4.0 KVA, 50 / 60 Hz
(No modifications necessary)
| Functions: | |
| - | Current output/pulsing |
| - | Torch rotation |
| - | Wire feed |
| Features: | |
| - | Up to 100 levels per program |
| - | Stores 100 weld programs internally |
| - | Optional wire feed capability for wire feed Heads |
| - | Auto-programming automatically generates procedures |
| - | Password protection of key functions |
| - | Weld parameter monitoring/out-of-limits reporting for QA/QC purposes |
| - | Transfers Programs and QC data using USB digital media |
| - | Auto-tacking automatically generates tack weld program |
| - | Large color LCD display |
| - | Stainless steel case with sealed membrane switches/display |
| - | Menu selectable language and metric/inch |
