MONGOOSE MILLHOG

MILLHOG ®

MONGOOSE MILLHOG





The Mongoose MILLHOG is a torque free beveling machine for tube and pipe from 0.625” (15.9mm) I.D. to 3.0” (76.2 mm) O.D. and is only 2.25” (57.15 mm) wide which makes it ideal for power station boiler tube work and constrained situations with limited access. Featuring a patented push-pull clamp and release mechanism, it allows the clamps to release from a tube as easily as they tighten. Ideal for beveling, facing and boring on a wide range of tube and pipe alloys, the Mongoose has dual opposed tapered roller bearing and employ the rigid EscoLock blade locking system; which provides chatter-free performance and produces a thick chip without cutting fluids.



PRODUCT DETAILS



 TECHNICAL DATA



Specifications

Working Range

0.625" I.D. - 3.0" O.D.
15.9mm I.D. - 76.2mm O.D.



Blade Series

 G-Series Blades
Min. Width 2.25"
57.2 mm
Length 15.25"
387.4 mm

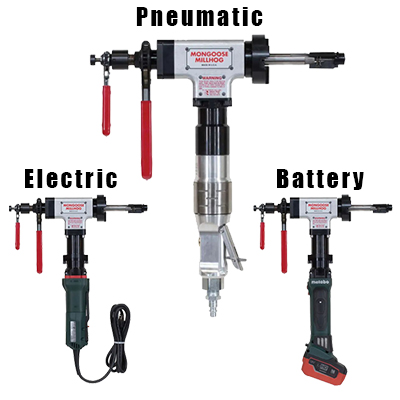

 PneumaticElectricBattery
 1.07 hp
800 W		950 W18 V-5.2 ah
 90 psi
6.2 bar		120 V
220 - 240 V		120 V
220 - 240 V
 35 cfm
990 Lt/min		50/60 Hz50/60 Hz
Cutterhead speed114 rpm14-58 rpm43 rpm
Working Weight14.8 lbs
6.7 kgs		15.9 lbs
7.2 kgs		16.4 lbs
7.4 kgs
Shipping Weight32.1 lbs
14.5 kgs		40 lbs
18.14 kgs		40.6 lbs
18.41 kgs
Shipping Dimensions20" x 18" x 5"
508 x 457 x 127mm		24" x 20" x 6"
610 x 508  x 152mm		24" x 20" x 6"
611 x 508 x 152mm





 FEATURES


  • Narrow body 2.25" (27.15mm)
  • Lightweight and torque-free
  • Interchangeable pneumatic, electric and battery motor options
  • Patented clamp system, allows the clamps to release from a tube as easily as they tighten
  • Permanently attached wrenches
  • Bevel, face and bore simultaneously
  • Rugged dual-opposed tapered roller bearings support gear drive for non-stop operation
  • EscoLock blade holding system reduces vibration and maximizes the number of preps per blade
